Reference
Settings
Every field in the Settings tab, by group.

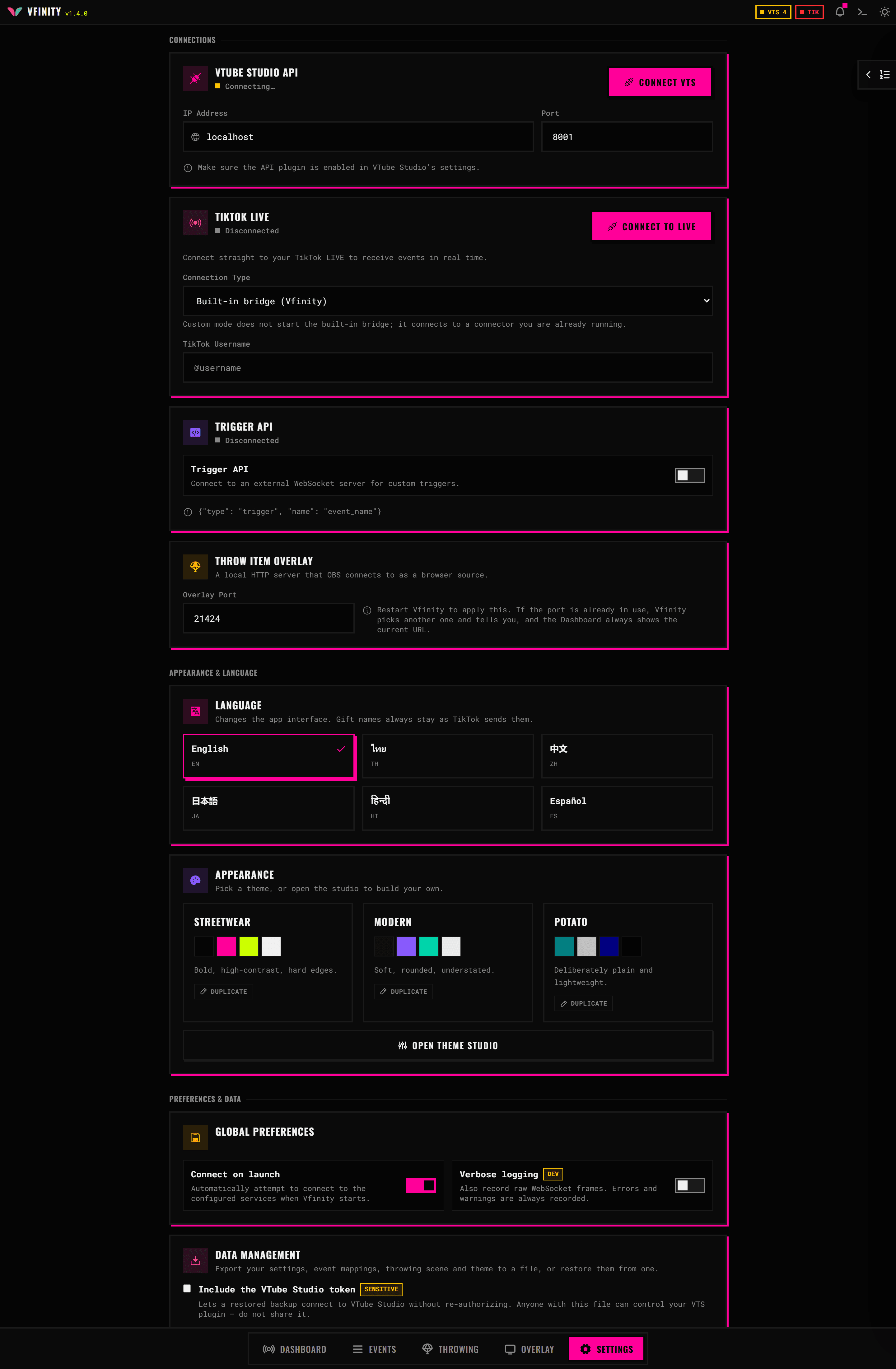

Settings is the fifth tab. It has three groups.
Connections
VTube Studio API
| Field | Default | Meaning |
|---|---|---|
| IP Address | localhost | Where VTube Studio is running |
| Port | 8001 | VTube Studio's plugin API port |
| Connect VTS | Opens the connection. VTube Studio then asks you to approve the plugin |
Status reads Disconnected, Connecting, Connected or Authenticated. Only Authenticated means actions will work.
TikTok LIVE
| Field | Default | Meaning |
|---|---|---|
| Connection Type | Built-in bridge | Built-in bridge (Vfinity) or Custom WebSocket (TikFinity or other) |
| TikTok Username | Your username without the @. Built-in mode only | |
| WebSocket Host | localhost | Custom mode only |
| WebSocket Port | 21213 | Custom mode only |
| Refresh gift list | Fetches the gift catalog again | |
| Connect to LIVE | Opens the connection |
You have to disconnect before changing the connection type.
Trigger API
| Field | Default | Meaning |
|---|---|---|
| Enable | Off | Turns the trigger API on |
| WebSocket Host | localhost | Your server |
| WebSocket Port | 8080 | Your server's port |
| Connect API | Vfinity connects out to it |
Throw Item Overlay
| Field | Default | Meaning |
|---|---|---|
| Overlay Port | 21424 | The local HTTP and WebSocket server OBS connects to |
Changing the port takes a restart. If the port is in use at launch, Vfinity picks another one and tells you, and the Dashboard always shows the URL that is live.
Appearance and language
| Field | Meaning |
|---|---|
| Theme picker | Streetwear, Modern, Potato, or one of your own |
| Open theme studio | The full token editor |
| Language | English, Thai, Chinese, Japanese, Hindi or Spanish |
Density, text scale, motion, glass blur, glow and the background image live inside the theme studio, under Your preferences. They are stored separately from the palette, so switching themes does not reset them.
Preferences and data
Global Preferences
| Field | Default | Meaning |
|---|---|---|
| Connect on launch | Off | Try the configured services automatically at startup |
| Verbose logging | Off | Also record raw WebSocket frames. Errors and warnings are recorded either way |
Data Management
| Control | Meaning |
|---|---|
| Export backup | Writes settings, mappings, the throwing scene and themes to a file |
| Include the VTube Studio token | Marked SENSITIVE. Lets a restored backup connect without re-approving, and lets anyone with the file control your VTS plugin |
| Import backup | Reads one back. Formats 1 through 6 are accepted |
See Back up and restore.
